Have been attempting the set up TL with my Audi 8HP55 transaxle. Im using a BMW bin file and getting some wierd results.

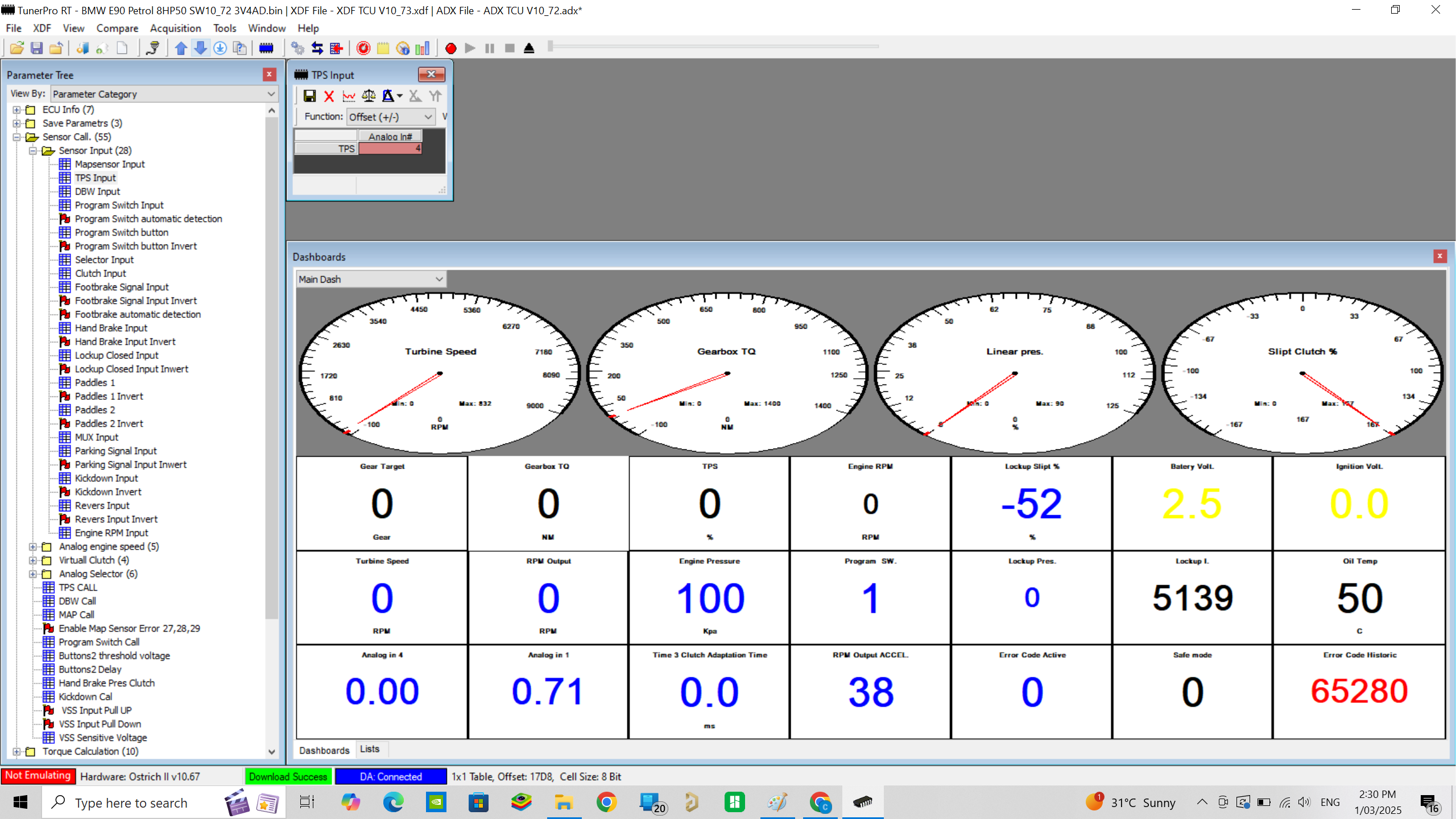

- UTunerPro screen5.png (744.27 KiB) Viewed 3318 times
The Error Code Historic seems crazy and I have attempted to test using the TPS input on A4. (I uploaded and captured the screenshot on the download to verify correct port).

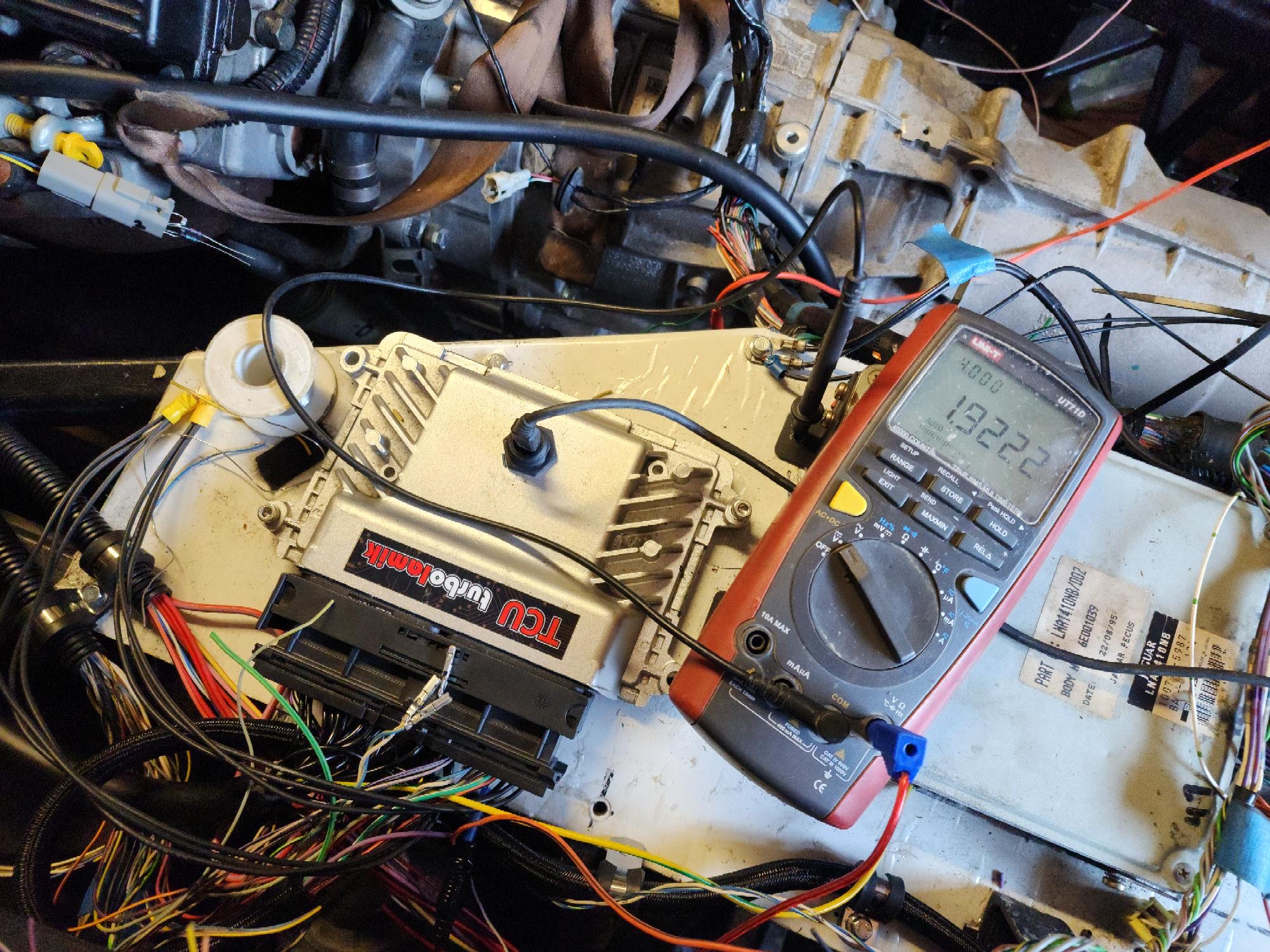

- 1000014771.jpg (578.58 KiB) Viewed 3318 times
This meter is reading A4 pin at the tcu. It varies when the tps is changed. But no values update in the TunerPro screen. Note A1 does change value, its currently not connected and floating. It seems it somewhat works.

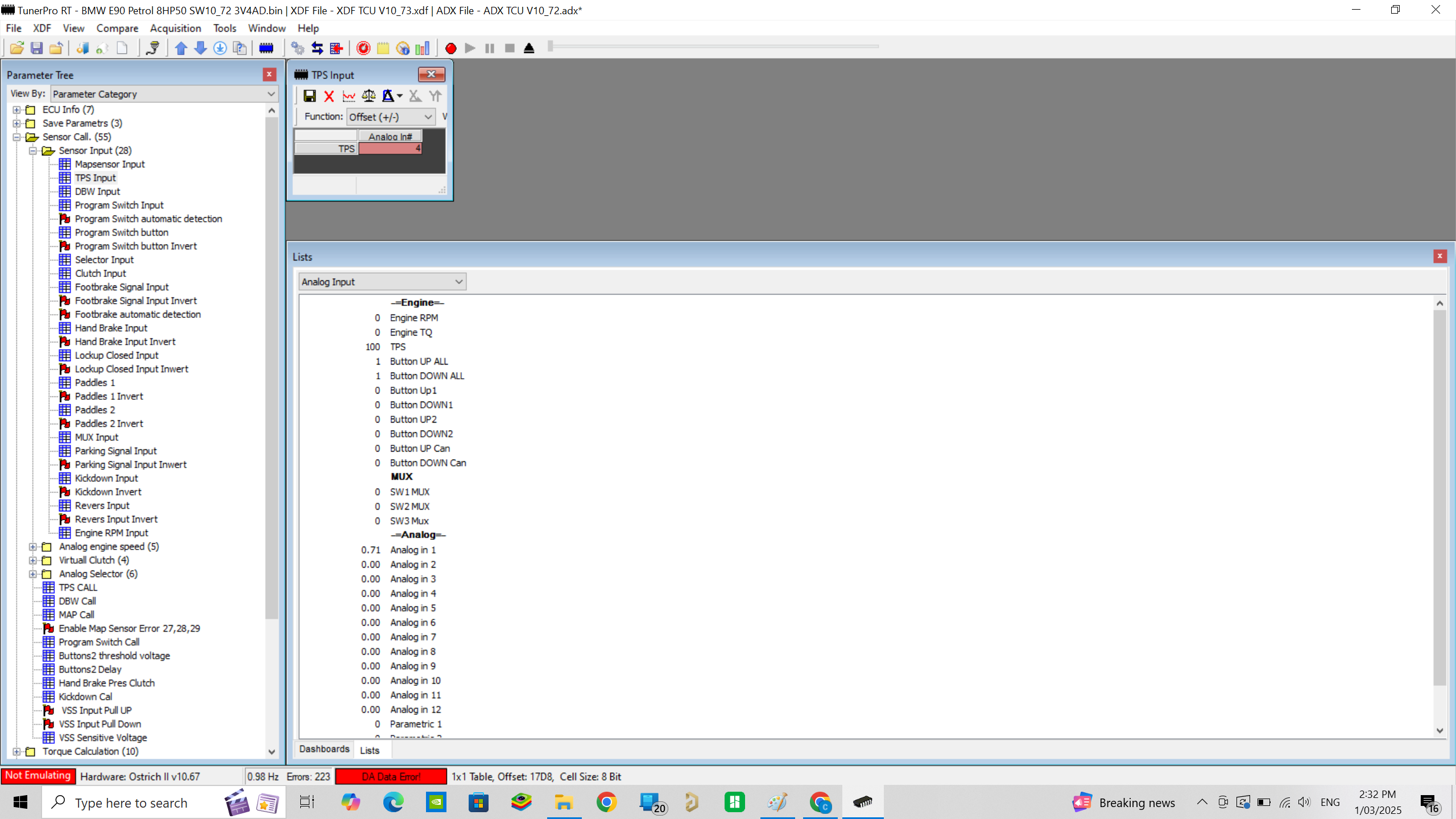

- UTunerPro screen6.png (583.06 KiB) Viewed 3318 times
List view shows similar readings.
Question: is the BMW 8HP70 bin suitable to use on an Audi 8HP55 box? I suspect this bin is incorrect?
