Rotary Program Switch issue !

[dsm4wd@yahoo.com]

Hello,

I have an issue when switching from P1 to any above Programs, it keeps return back to P1 once I put the Selector to "D" or "R" positions even the voltage in Analog10 is healthy and not dropping to P1 setup value.

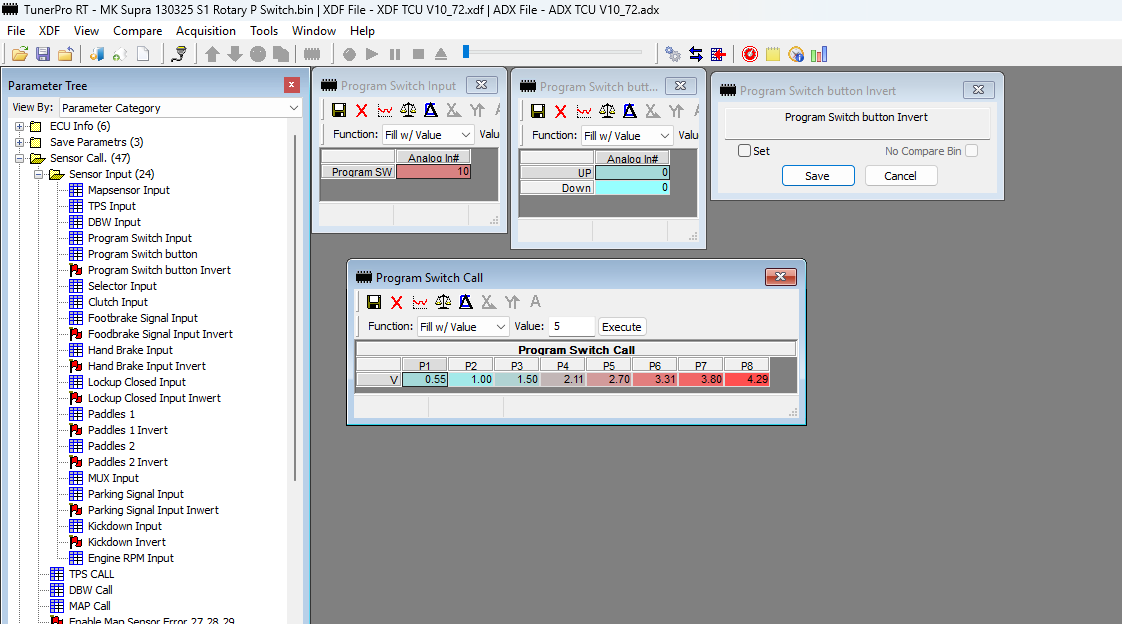

I'm using 8HP70 with TCU 10.72 version and I have attached the Program Switch Setup.

Thank you,
Mohammed

[Jar]

this is normal behavior. TCU has 8 programs. turning on D or R simply starts the first one. if you want to use others, the selector must be on M/S

[dsm4wd@yahoo.com]

Sounds great, thank you for the quick reply

[dsm4wd@yahoo.com]

I tested the Program Switch and found it working fine with the Selector on M/S, however is not working with the Paddle Shifters, so is this NORMAL ?
