Manual Typos

[Tank]

Hello Moderators,

Are there any plans to fix all the typos in the manual?
For example

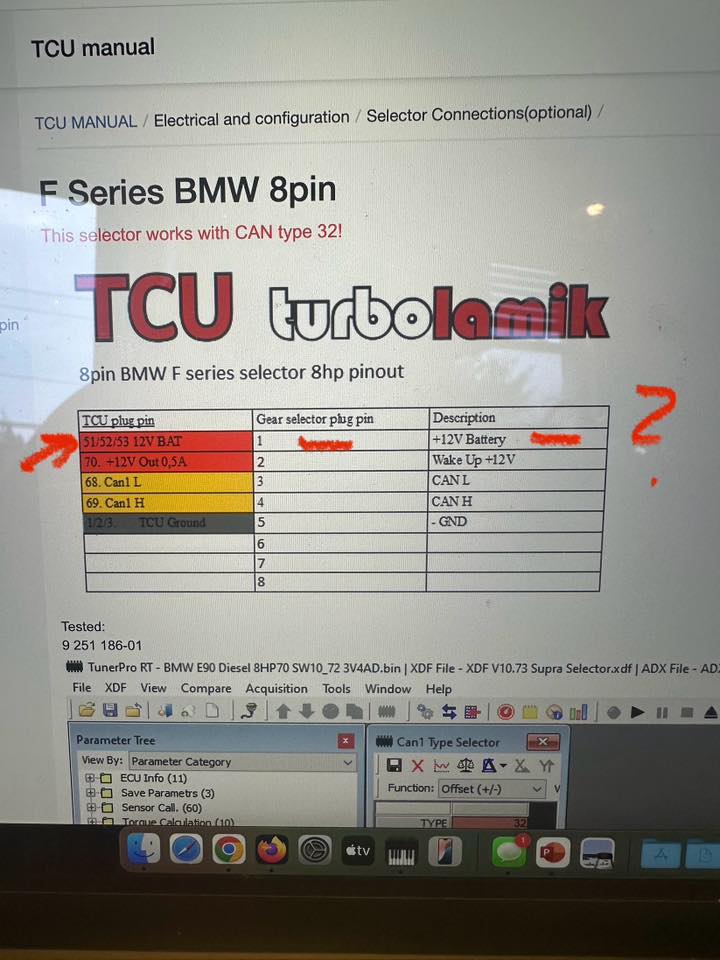

Tuyrbo lamik.jpg (86.17 KiB) Viewed 2347 times

There are several other typos through out the manual making wireing a challange. Would be great if this could get fixed. Probably make this great piece of electronic machinery more attactive to buyers.


Thanks!

[Jar]

I don't see anything wrong here. can you explain?

[clive2109]

Adding some info here, the 'Gear Selector +12v DOES NOT go to pins 51,52 or 53. Same with its GND. Its incorrectly numbered in the table.
