TCU TurboLamik

Thanks Jar

How do I contact Tech Support and arrange remote log in?

Im located in Sydney, Australia.

Here are some details on the 2 versions of this transmission - with or without cable connector - a bowden cable operated park selector.

In both versions there are also missing wires in the mechatronics internal wiring loom. Details of the resistance checks are in the TL manual. An additional ...

Hope you found a solution, as of 10 Apr 25, you had around 300 views and no one replied. You can use VSS out, Aux Out 9, pin 54.

Note: the Aux Outputs are all on/off type outputs (like a switch), this pin is active low type, when closed the switch connects to ground. You will need to connect a ...

Adding some info here, the 'Gear Selector +12v DOES NOT go to pins 51,52 or 53. Same with its GND. Its incorrectly numbered in the table.

Cheers M4, have updated.

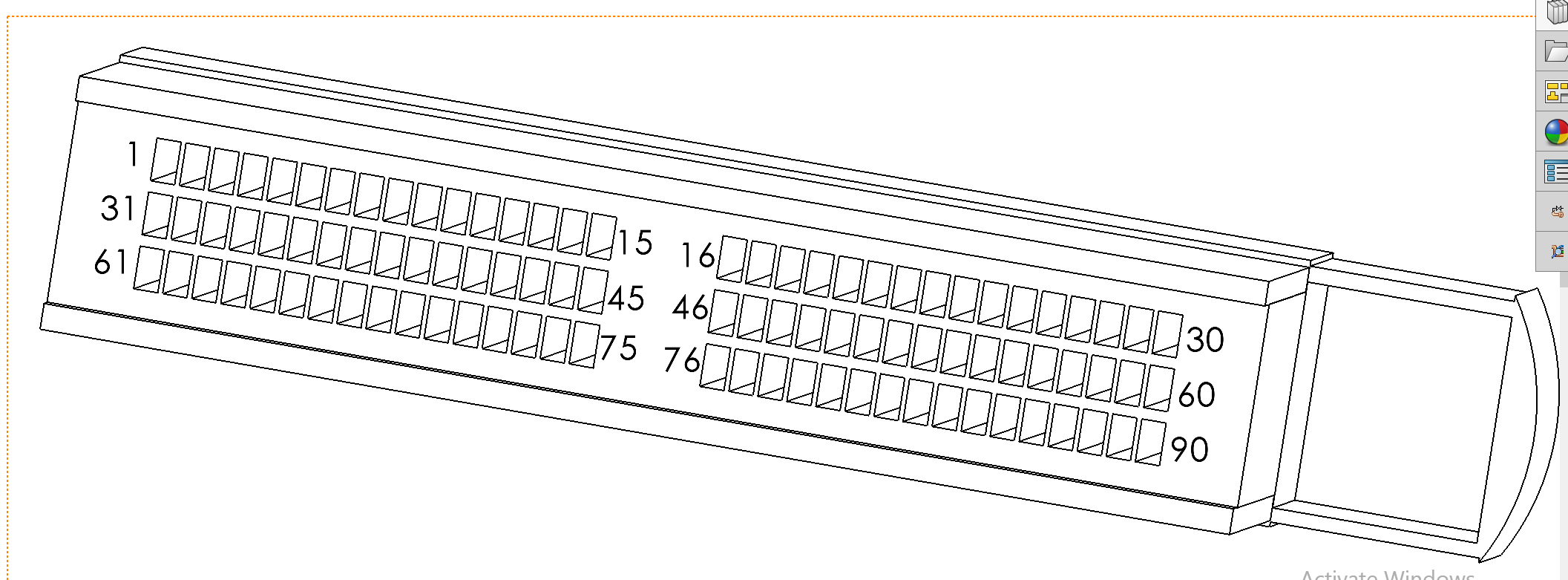

Couple of pics of the connectors.

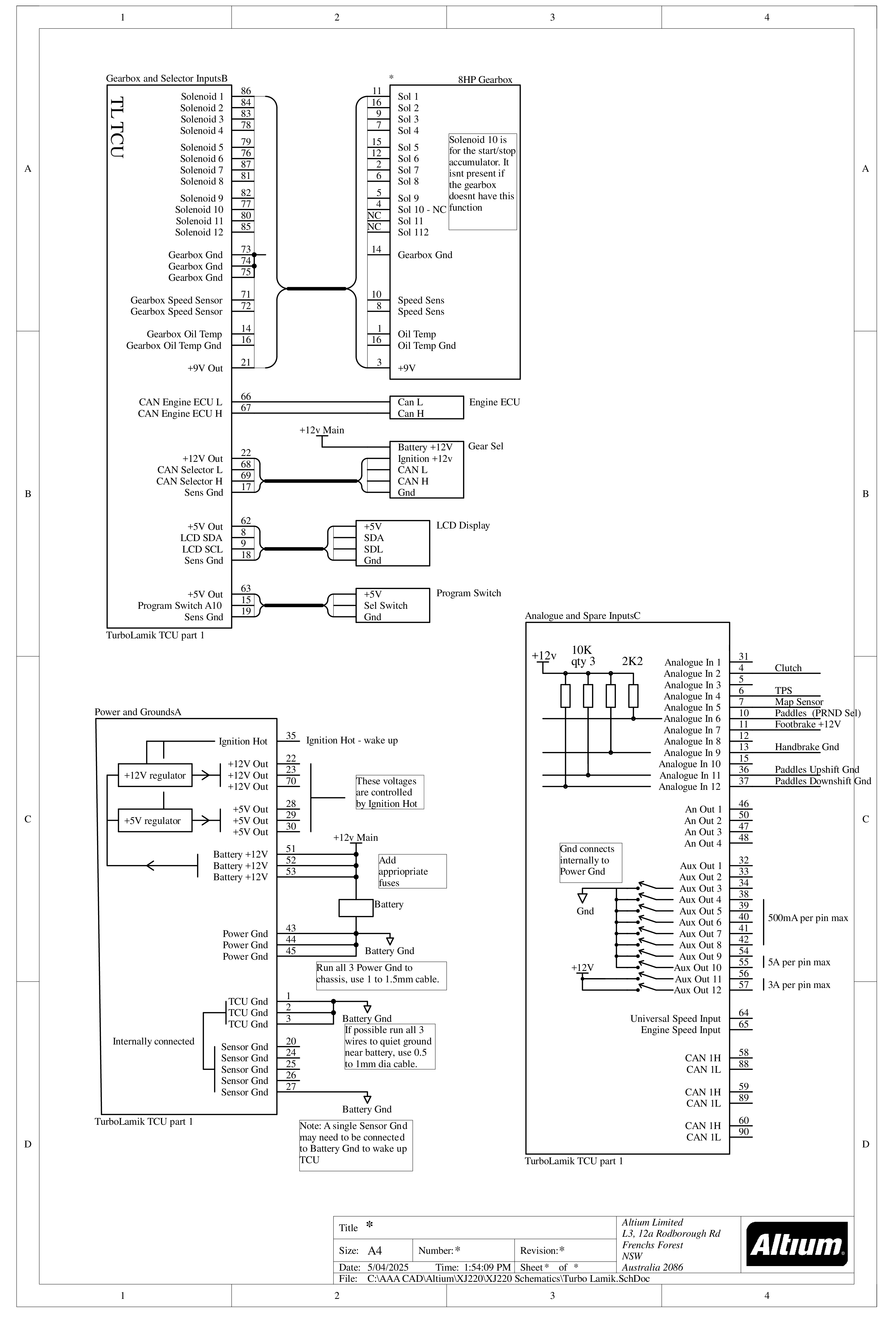

Heres some info on wiring, it may make connecting the TCU easier.

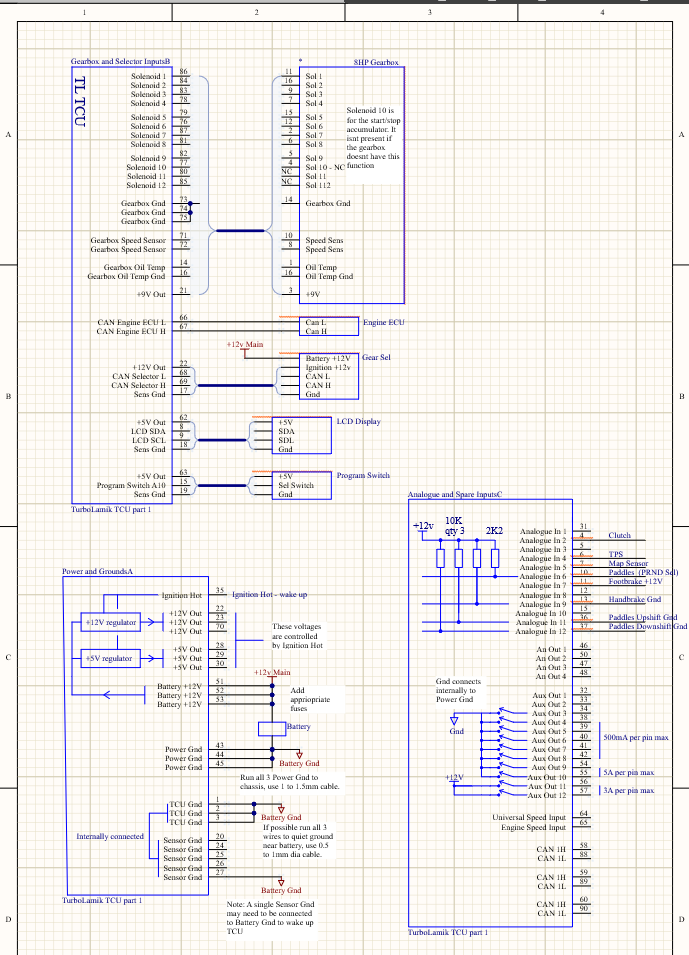

Edit: Updated

Have been attempting the set up TL with my Audi 8HP55 transaxle. Im using a BMW bin file and getting some wierd results.


UTunerPro screen5.png

The Error Code Historic seems crazy and I have attempted to test using the TPS input on A4. (I uploaded and captured the screenshot on the download to ...

Also have this question and Im not sure of my version of gearbox and whether it has the mechanical selector or not. I obtained this trans as an old stock unit and it came in a packing case without any other items. Note these transmissions are available through Ali from China.

Is there a way to ...

Have the same question as Im wiring up this unit..... but the image in the reply isnt visible.

There are 4 seperate grounds on the TCU:

TCU ground (pins 1,2,3)
Power ground (pins 43,44,45)
Gearbox ground (pins 73,74,75) Can work that one out!)
Sensor ground (pins 16-20, 24-27)

The TCU grounds ...
